JSON Schema Connector

This article describes how DataGalaxy JSON Schema connector works.

This connector is available in the following modes:

What is a JSON Schema ?

A JSON Schema file allows to describe the metadata and define rules on the structure of another JSON file. A JSON Schema file can for example be used to describe and control the content of a Kafka topic.

The syntax of a JSON Schema is defined by the specification published here : https://json-schema.org/specification.html .

For example, to specify the format of the following file :

{
  "productId": 1,
  "productName": "A green door",
  "price": 12.50,
  "tags": [ "home", "green" ]
}

{
  "$schema": "https://json-schema.org/draft/2020-12/schema",
  "$id": "https://example.com/product.schema.json",
  "title": "Product",
  "description": "A product from Acme's catalog",
  "type": "object",
  "properties": {
    "productId": {
      "description": "The unique identifier for a product",
      "type": "integer"
    },
    "productName": {
      "description": "Name of the product",
      "type": "string"
    },
    "price": {
      "description": "The price of the product",
      "type": "number",
      "exclusiveMinimum": 0
    },
    "tags": {
      "description": "Tags for the product",
      "type": "array",
      "items": {
        "type": "string"
      },
      "minItems": 1,
      "uniqueItems": true
    }
  },
  "required": [ "productId", "productName", "price" ]
}

Connector Overview

⚠ The connector is not capable of automatically determining the schema of any JSON file. The JSON files to be scanned by this connector must conform to the JSON Schema specification described above.

Connector allows you to import objects into a NoSQL source from one or more JSON Schema files (default .json file) stored in a directory accessible by the connector.

The extracted objects and their correspondences are detailed in the following table:

Step 1 : Installation

• Download DataGalaxy connector from the portal (see here)
• Extract the connector archive in the directory of your choice
• Download the JSON Schema plug-in from the portal and copy it into the /lib directory of the connector

Step 2 : Run JSON Schema connector

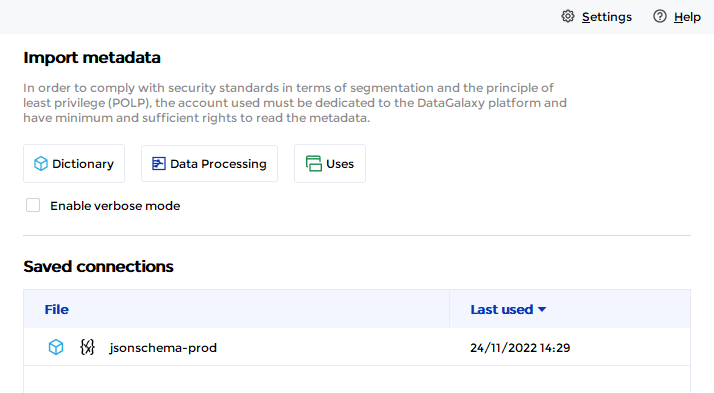

• After starting the connector, access to Dictionary connectors:
• If it has been correctly installed, the JSON Schema plug-in appears in the list
• The following information is requested:

Once these information filled, you can test the connection and start the import.

Technical information

Link to JSON Schema documentation: https://json-schema.org/
