⚠️ The DataGalaxy ADLS Gen1 connector will be removed from the list of supported connectors end of June 2026. It won't be available in your platform anymore.
If you're already using the ADLS Gen1 connector plugin of the Desktop connector, you can continue using it at your own risk. But it will not be updated anymore (including regarding vulnerabilities) and the support team won't be able to help you if you encounter issues.
This article describes how to use DataGalaxy Azure Data Lake Services Gen1 (ADLS Gen1) Connector
This connector is available in the following modes:
| Desktop mode ✅ | SaaS Online mode ❌ |
Connector scope
The extracted objects and their correspondences are detailed in the following table:
ADLSGen1 Object | DataGalaxy Object | Comments |
| Directory | Directory (Container) | |
| File | Fichier (Structure) | |
| Field | Field | The definition of the columns is imported if the processed file is a CSV file (separator ";") |
Step 1 : Installation
- Download DataGalaxy connector from the portal (see here)
- Extract the connector archive in the directory of your choice
- Download the Azure Data Lake Gen1 plug-in from the portal and copy it into the /lib directory of the connector
Step 2 : Run Azure Data Lake Services Gen1 connector

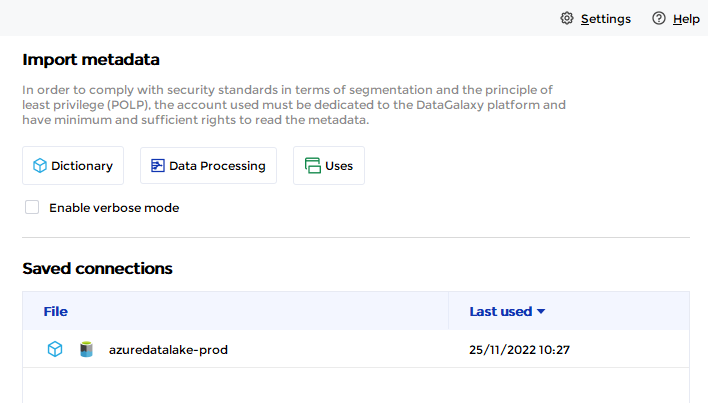

- After starting the connector, access to Dictionary connectors:
- If it has been correctly installed, ALDS Gen1 plug-in appear in the list

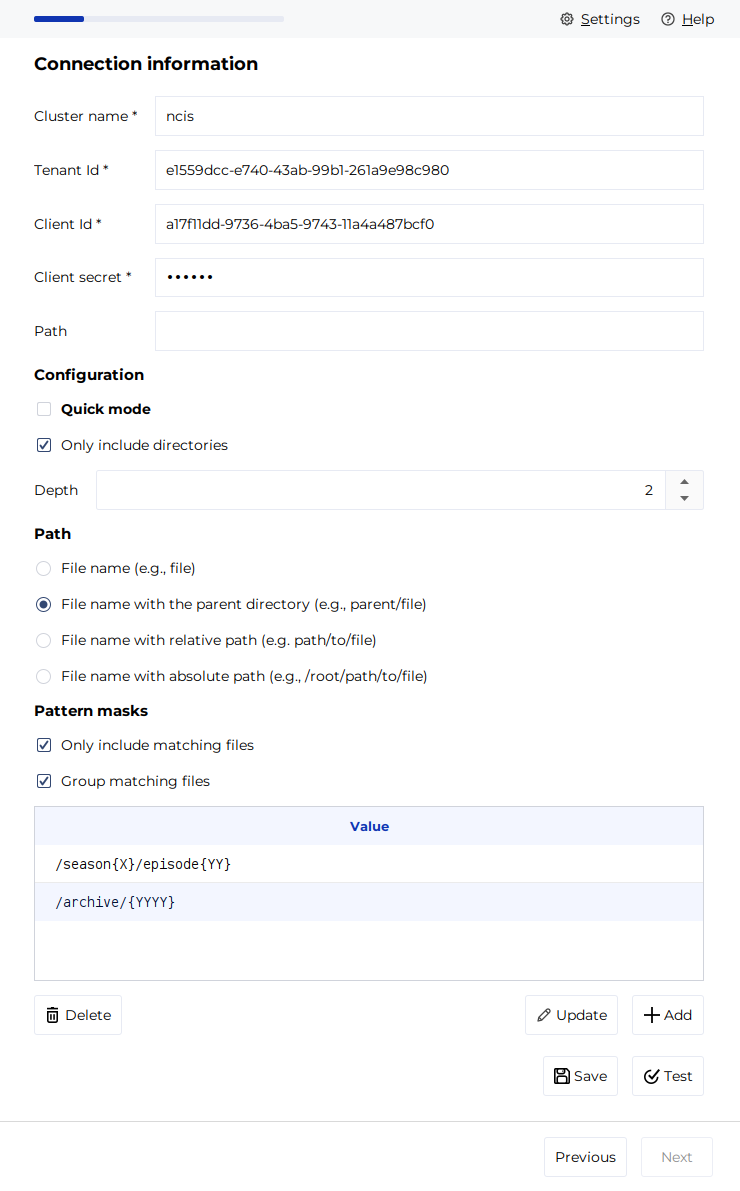

- The following information is requested:
| Parameter | Mandatory | Description |
| Cluster Name | Yes | |
| Tenant Id | Yes | Azure tenant identifier |
| Client Id | Yes | Azure Client Service Account ID |
| Clientsecret | Yes | Client Secret |
| Path | No | Root path to navigate |
| Quik mode | No | This option is to be preferred for large datalakes. In this mode, the connector does not compute a summary before import, and the columns of the CSV files present in the datalake are not imported into DataGalaxy |
| Only include directories (filter) | No | The connector does not list the files contained in the directories. |
| Depth (filter) | No | Limits the depth of the directories to be browsed to N levels of subdirectories. All subdirectories are browsed when this parameter is equal to 0. |
| Patterns | No | Masks allow you to define strategies for grouping and filtering folders and files according to naming patterns. Example: /datasource/{YYYYMMDD}/file_{YYYYMM}_{zz}.csv Masks must be absolute paths from the root and each character is important, so it may be necessary to define multiple masks to cover all your cases. More information about this setting is available when running the connector. |
Once these information filled, you can test the connection and start the import.
Technical information
The service account used must be configured to have the following rights:
- Authorized APIs (to be defined when the application is registered): Azure Data Lake
- Role assignment (to be defined at the storage account level): Drive
You can optionally set additional restrictions using ACL' s to limit the resources that the service account will have access to.
The ADLS Gen1 connector uses the Azure Data Lake Store Gen1 REST APIs (https://docs.microsoft.com/fr-fr/rest/api/datalakestore/)
Releases
| Date | Plugin Version | DataGalaxy release | Desktop Connector version (minimum) | Description |
| 23/08/2024 | 4.0.1 | v3.69.0 | 5.2.3 | Updated the logger to show more information when using verbose mode |
| 06/08/2024 | 4.0.0 | v3.65.0 | 5.0.5 | Migrated from java 11 to java 17 + CVE fixes |
