dbt Connector

This article describes how dbt connector for DataGalaxy works.

This connector is available in the following modes:

This connector supports the following import modes:

Scope, attributes and mapping with DataGalaxy

The representation of dbt objects in DataGalaxy depends on the import mode. dbt Models are both a transformation and the destination storage object which presents the transformed data, so in DataGalaxy they are represented both in the Dictionary and the Data Processing modules.

In Standard mode, the Sources and Models are represented in the Dictionary as objects with dbt technology. It's the same abstraction layer than the one that dbt proposes, hiding the underlying real data platform objects. The hierarchy of Sources and Models in Standard mode in the Dictionary follows the package's organization, as for the Data Processing module.

In URN mode, currently available when using dbt with Databricks, BigQuery or Snowflake, the Sources and Models are resolved thanks to the informations of the connection (profiles.yml for dbt Core and projects' connection linked to the production environment for dbt Platform) so that the real data platform objects can be created in the Dictionary. This offers a better view of the lineage in the data platform, which can be completed to the dataviz tool downstream (for instance using the Power BI URN connector) or the ingestion layer upstream Sources. The abstraction layer of dbt is not represented in DataGalaxy in URN mode. The dbt Models are still represented in the Data Processing module. The hierarchy of Sources and Models in the Dictionary in URN mode follows the one of the data platform, so that this mode is fully compatible with other connectors bringing metadata to the same objects (Snowflake, Power BI, Sifflet connectors etc).

⚠️ If you use another data platform than Snowflake, BigQuery or Databricks with dbt, better disable the URN mode, as no objects will be created at all in the Dictionary and no lineage will be created.

As described in the connection's configuration section, the sources of metadata for dbt Core are the .json dbt documentation files (and the profiles.yml file in URN mode). For dbt Platform it's the Administrative v3 and Discovery APIs (the Applied state of the Production environment linked to the selected project is used).

Objects

Some of the attributes listed here may not be present by default in your objects' screens configuration. To make them appear in DataGalaxy screens, it may be necessary to adapt the screens of the concerned objects before running the connector. See this article to learn more about screen customization.

Account

The dbt Platform Account is represented in the Dictionary (Standard mode only) as a Relational DB Source, and in the Data Processing module as a Data Flow. For dbt Core, the Account is replaced by a generic root object representing the dbt Core product.

The URN follows this syntax for dbt Core:

urn:dbt-1:dbtcore.profile_name

urn:dbt-1:account_id

The following attributes are retrieved:

Project

The project is only relevant for dbt Platform and is represented in the Dictionary (Standard mode only) as a Model, and in the Data Processing module as a Data Flow.

The URN follows this syntax:

urn:dbt-1:account_id:project_id

Package/Folder

The package and folders are represented in the Dictionary (Standard mode only) as a Model, and in the Data Processing module as a Data Flow.

The URN follows this syntax:

urn:dbt-1:account_id:project_id:package:folder1:folder2

Source

A dbt Source is represented as the corresponding structure (Table or View) in the Dictionary. In URN mode, the real data platform object behind the dbt Source is represented, not the Source itself. In Standard mode, the Source is represented, with the dbt technology.

Pushing the attributes of the Sources to the Dictionary object is optional in URN mode, as you may prefer filling these attributes from the dedicated connector of the data platform.

The URN follows the syntax of the structure's URN for each data platform. Check the related documentation.

The following attributes are retrieved from the dbt documentation files (dbt Core) or the Discovery API (dbt Platform):

Model

A dbt Model is represented both as a Data Processing object in the Data Processing module and as the target structure (Table or View) in the Dictionary. In URN mode for the Dictionary, the real data platform object behind the dbt Model is represented, not the Model itself. In Standard mode for the Dictionary, the Model is represented, with the dbt technology.

Pushing the attributes of the Models to the Dictionary object is optional in URN mode, as you may prefer filling these attributes from the dedicated connector of the data platform.

The URN follows the syntax of the structure's URN for each data platform. Check the related documentation.

The following attributes are retrieved from the dbt documentation files (dbt Core) or the Discovery API (dbt Platform):

For the Data Processing objects:

For the Dictionary objects*:

* if option selected

Column/Field

The Columns or Fields of dbt Sources and Models are represented as Columns or Fields in the Dictionary, under the structure representing the corresponding Source or Model.

Pushing the attributes of the Columns and Fields to the Dictionary object is optional in URN mode, as you may prefer filling these attributes from the dedicated connector of the data platform.

The URN follows the syntax of the structure's URN for each data platform. Check the related documentation.

The following attributes are retrieved* from the dbt documentation files (dbt Core) or the Discovery API (dbt Platform), here for a Model but the mapping for a Source is similar:

* if option selected

Links

The links created by the dbt connector are lineage links between Models and upstream Sources/Models. In URN mode, links are created directly with the real structures (Tables/Views) of the data platform in the Dictionary. In Standard mode, links are created with Dictionary objects representing Sources and Models.

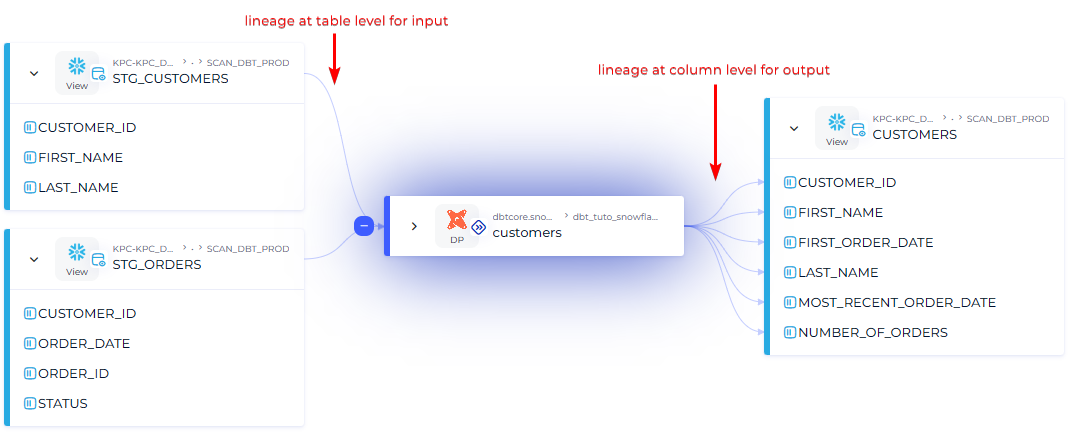

ℹ️ The granularity of the lineage is at table level between the Data Processing object and its input Dictionary object, and at Column level with the output Dictionary object. dbt doesn't provide the full lineage at column level yet, so theoretically the lineage should be at table level everywhere. But as we're sure that the columns of the output are impacted by the transformation as they are managed by dbt, we've decided to link every column of the target structure to the Data Processing object representing the Model.
Considering the feedbacks of our customers, we may change this behavior to link all objects at table level for more clarity. Then, when dbt will provide the full lineage at column level, we will be able to add this feature to the connector too.

Technical information and dbt privileges

Used with dbt Core, the dbt connector needs the following files from dbt:

• manifest.json: describes the whole dbt project
• catalog.json: describes the metadata of the tables or views manipulated in the SQL scripts
• profiles.yml:  in URN mode, this file provides the necessary information to create the URNs of the Tables and Views of the data platform connected to dbt, to be able to generate a proper lineage between these objects in DataGalaxy's Dictionary.

The profiles.yml file is part of your project. The two .json dbt documentation files are generated using the following dbt command and placed in the target/ directory of the project:

dbt docs generate

From Standard to URN mode

Differences

1. In Standard mode, the name of the root objects will be the one you give when you create the connection. In URN mode, there is no dbt root object in the Dictionary (see above in the description of the mapping), and for the Data Processing module the root object represents your dbt Platform account (for dbt Platform subscriptions) or a generic dbt Core platform (if you use dbt Core). Its name is automatically defined and corresponds to the last segment of the URN of the object.
2. In Standard mode, there are no differences between dbt Core and dbt Platform objects hierachy, as the root object represents the project. In URN mode, for dbt Platform the root object represents the platform itself, with its projects as children. So there is an additional level of hierarchy.

Migration guide

ℹ️ This migration guide is useful if you enrich your objects (custom attributes, links...). If all information on your DataGalaxy dbt objects come from the connector, the fastest path is to remove the objects from DataGalaxy and reimport using the URN mode.

ℹ️ Keep in mind that in URN mode the representation of the objects in the Dictionary changes completely, from representing the dbt Models associated with a dbt Technology in DataGalaxy, to representing the real objects from your data platform (Snowflake, BigQuery, Databricks). As this representation is new, migrating metadata from the old to the new representation could not be relevant. If you're using another data platform than the 3 currently supported, please reach out to us through support ticket or your AM before migrating (see FAQ too).

For dbt Core

If you have enrichments you want to keep on your Dictionary dbt objects, you'll have to export them using the CSV export, run the connector in URN mode and then reimport your attributes on the new objects. Then, remove the hierarchy of objects with dbt Technology from the Dictionary, as they are no longer relevant in URN mode.

For the Data Processing module, if you want to keep your hierarchy of objects from the Standard mode, here are the steps to follow:

• If you've automated the providing of the catalog.json and manifest.json files to the connector, you'll have to add the profiles.yml file the same way to use the URN mode. Note that the connector doesn't need the credentials of your data platform so we recommend you remove them from the file;
• Add the URN attribute to the Data Flow objects in your screens if they aren't already;
• Add the value of the URN on the Data Processing module's root object used by your Standard connection, following this pattern: urn:dbt-1:dbtcore.<name_of_your_dbt_profile> . For instance, if the profile you use from the profiles.yml file is my-dbt-prod, the root object's URN should be: urn:dbt-1:dbtcore.my-dbt-prod .
• Be sure to be in technical view (toggle in the top right hand corner menu) and change the technical name of the Data Processing module's root object used by your Standard connection, following this pattern: dbtcore.<name_of_your_dbt_profile> . For instance, if the profile you use from the profiles.yml file is my-dbt-prod, the root object's technical name should be: dbtcore.my-dbt-prod .
• Launch the connector and activate the URN mode. You'll have a new parameter to fill, to provide the profiles.yml corresponding profile name and target, and a few more options about attributes synchronization (see previous chapters of this documentation).
• After running the connector, the Dictionary should be filled with the objects of your data platform (Snowflake, BigQuery, Databricks) and all objects in the Data Processing module should have been updated with their own URN.

Congratulations, you migrated successfully!

For dbt Platform

If you're a dbt Platform (Starter, Enterprise, Enterprise+) customer, please reach out to us so that we can support you in migrating seamlessly.

Execution of the connector

dbt connector imports metadata from dbt .json documentation files (dbt Core) or using the Discovery API (dbt Platform Starter, Enterprise or Enterprise+). The technical information paragraph details the procedure to follow to generate the files for dbt Core.

Step 1: Installation

• Download DataGalaxy connector from the portal (see here)
• Extract the connector archive in the directory of your choice
• Download the dbt plug-in from the portal and copy it into the /lib directory of the connector

Step 2: Run the dbt connector

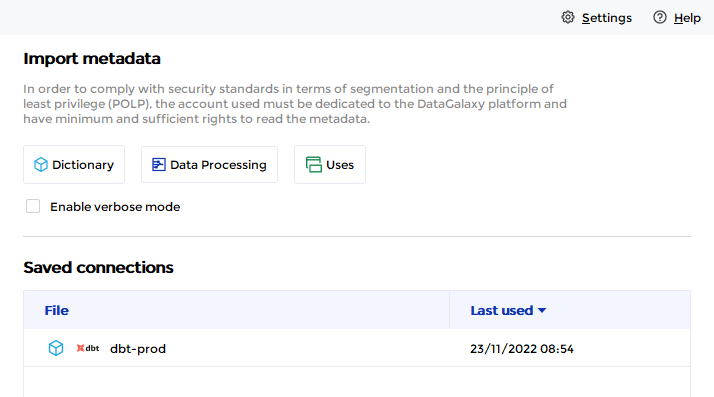

• After starting the connector, access Dictionary or Processing type connectors:
• If it has been correctly installed, the dbt plug-in appears in the list

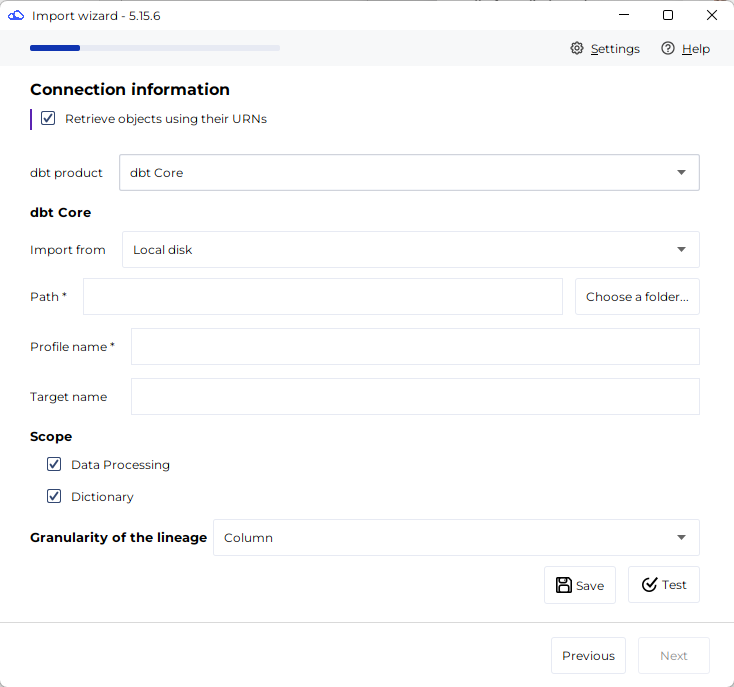

• The following information is requested for dbt Core:

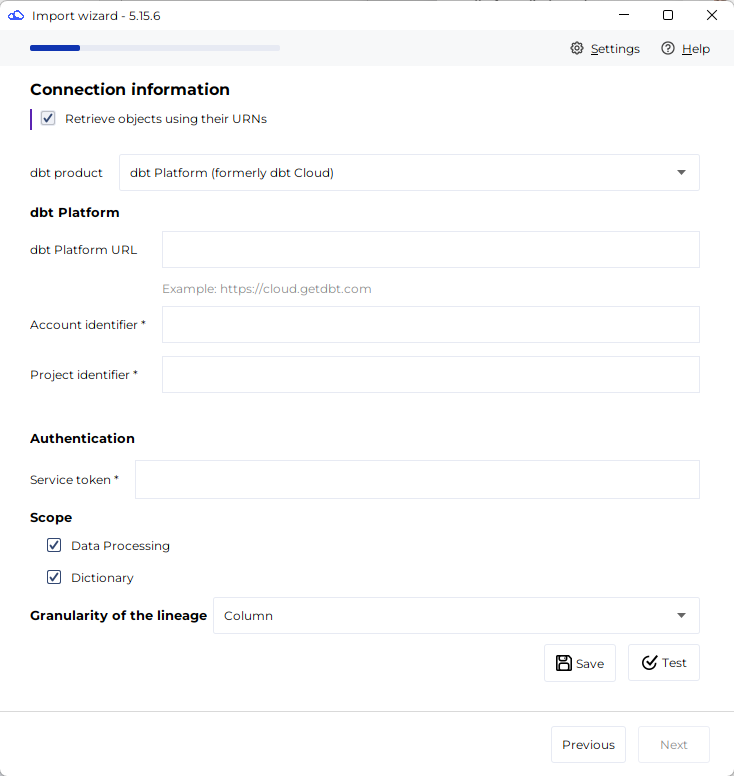

• The following information is requested for dbt Platform: Complete list of parameters:

* see FAQ for more information about this privilege.

Test button will check that all necessary files are present in the selected working folder.

Frequently asked questions

Should I use the lineage offered by dbt or the one provided by the connector of my data platform (Snowflake, Databricks, BigQuery)?

There are pros and cons in both solutions. First, be sure that in URN mode, you have both options, so you can test both and choose what suit your needs.

Considering the lineage provided by dbt is at table level only, you may prefer to use the one provided by your data platform if you want it at column level. But in this case, the links will be created directly between the Dictionary objects, not involving the dbt Data Processing object (representing the Model responsible for the transformation). On the other side, on some data platforms getting the lineage can generate costs (tracking costs for BigQuery, warehouse costs for Snowflake...), when the lineage provided by dbt is available free of charge.

How do the Orphaned objects handling feature manages the data platform objects in URN mode? Can their status change to Obsolete or can they be deleted if they don't exist anymore after a Model change in dbt?

Indeed, if a Model has changed or has been deleted in dbt, the corresponding target object in the data platform could be impacted at the next run of the dbt project, so it could make sense to apply the orphaned objects action on them.

Due to a current limitation, a connector cannot consider orphaned objects from another technology. So the dbt connector cannot handle the orphaned objects for Snowflake, Databricks or BigQuery. The team is aware of this limitation and an evolution will be available to manage this. It will be an option: the user will have the choice to let the connector consider the objects of the data platform (in the Dictionary) part of the dbt orphaned objects scope, or not, as the user might prefer to manage the orphaned objects with the dedicated connector of the related data platform.

Is it planned to implement the support of other data platforms connected to dbt in URN mode?

The support of dbt + Postgres is planned. If you're looking for another data platform, please reach out to us through your Account Manager. Depending on the complexity and our priorities, we may add the support of other technologies in our roadmap.

Why do I need to provide Account Viewer privileges in addition to Metadata only permission set?

The connector uses more API endpoints in order to retrieve the list of environments and automatically select the deployment one. These calls require Account Viewer privilege for now. We thought it would be easier for our customers to limit the number of parameters to provide to the connector. We could use another approach which would only require Metadata Only privileges, which would mean defining more parameters in the connector's configuration. If you think it's a safer and better option in your context anyway, please reach out to us. We listen carefully to feedbacks especially when it's about security.
